EZ Lynk

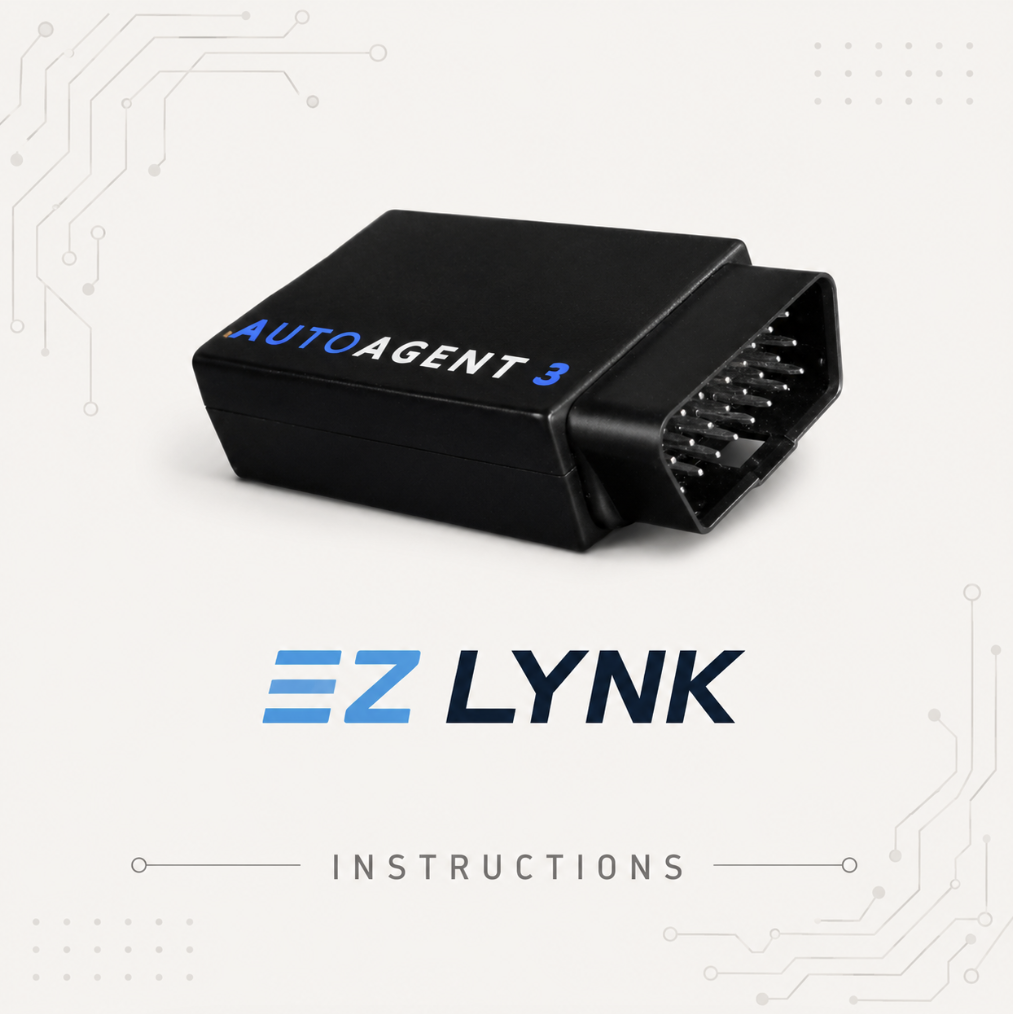

The Auto Agent 3 is EZ Lynk's portable tuning tool. It's fairly simple to use, and guides you through the process, but it's still nice to have a guide to familiarize yourself.
No email to confirm link-up can be provided when we sell EZ Lynk MotorOps tuning. Please allow for 1 hour after purchase within business hours for tuning to be linked, then you may proceed to the tuning. If still not linked, you may call 1-866-867-1593 for MotorOps direct, and provide your VIN to the tech team (not sales). Some tuning such as trucks with fuel system or turbo modifications may require the vehicle to be linked to your EZ Lynk app with MotorOps as your technician before it can begin
On top of tuning capabilities, the EZ Lynk is also able to change tire size for speedometer correction, as well as be used as a diagnostics tool
App Download:
https://www.ezlynk.com/app
Installation Instructions
Be sure you have a good mobile internet signal before attempting to load the files. If it's too slow, it will give an error and refuse to work.
1: Plug in Auto Agent to your truck's OBD2 port
2: Turn you truck key to "on" to power it up. Engine must not be running
3: Connect your phone to the Auto Agent over Wifi.
4: Open up the app and sign in
5: Go to the top left, "Vehicle". It should recognize your VIN. Go to "Technicians" and make sure you are linked to Tunes@MotorOps.ca
You're now ready to go
Tuning
1: Go to ECU Profiles
2: Select your tune and download it from the cloud
3: Select install on the tune file you wish to install
Tire Size / Speed Limiter / TPMS
1: Go to Vehicle Details
2: Select "edit" in the top right
3: edit as needed
Datalogging
1: Go to Dashboard (main screen) and set up your PIDs (see list below)
2: Click the lightning bolt in the top right, and "Record Datalog"
3: Replicate the issue
4: Press the red square in the bottom left, Save the log and add a quick description of the issue in the notes
5: Select the three lines in the top left, and go to "Vehicle"
6: Select Datalogs
7: Select the log you'd saved, add a note, and click the "Send to technician" light blue box near the top.
8: Select the Tunes@MotorOps.ca technician
9: Select "Send" at the top right, and it will upload the log
Contact us either by phone, web form, or email to let us know the log has been uploaded, as EZ Lynk will not notify us.
PIDs for Datalogging:
To select different PIDs, touch the square you wish to change (Tiles or Graphs screen), and select the PID from the bottom (scrolls left to right)
Cummins:
- Engine RPM
- Throttle Position
- Boost Pressure
- Mass Air Flow
- Injection Quantity (D)
- Injection Pressure (A)
- Injection Pressure (D)
- Turbo Vane Position
Duramax:
- Engine RPM
- Throttle Position
- Boost Pressure
- Mass Air Flow
- Injection Quantity (D)
- Injection Pressure (A)
- Injection Pressure (D)
- Turbo Vane Position
Powerstroke:
- Engine RPM
- Throttle Position
- Mass Air Flow
- Injection Quantity (D)
- TS
- Exhaust Mani. Pressure
- Turbo Vane Position (D)
Live Data
In the top left, select Dashboard. This opens the live data display
At the top, you can select Tiles, Gauges, or Graphs to display as you prefer
You can touch the different gauges/tiles to change what they display by selecting different options at the bottom
